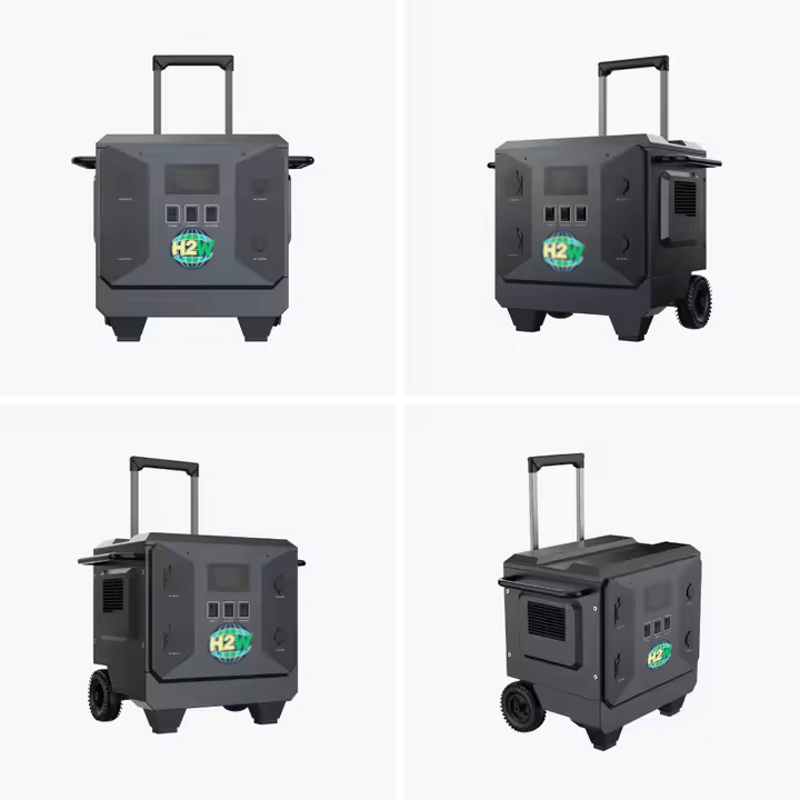

H2W Sodium Battery 2.7kWh 5kW Mobile Home Energy Storage Sodium Ion Battery

H2W

$1238.54 (Out Of Stock)

Those who travel by camper or converted van appreciate the independence and the possibility of having a certain degree of self-sufficiency. To guarantee this freedom even in terms of power availability, it is possible to use portable power stations. These devices are also used in community gardens or craft activities, that is, wherever electricity is needed and there is no connection available. Battery with inverter specifications

Model	PT5000
Battery
Battery chemistry	Sodium-ion battery
Life cycle (25 + 2 C, 0.5C/0.5C, 80% DOD)	3,000
Nominal voltage	45V
Capacity	60Ah
Battery energy	2,700wh
Output (AC)
Nominal power	5,000W
Peak power	7,500W
Nominal output voltage	230Vac
Output voltage range	220Vac - 240Vac
Output voltage frequency	47Hz ~ 53Hz / 57Hz ~ 63Hz
Input (AC)
Nominal input power	1,500W
AC start voltage	190Vac - 264Vac
Voltage frequency	50Hz / 60Hz
Input (PV / DC)
Max. DC power	1,200 W
MPPT voltage range	12V ~ 80V
Max. MPPT input current	20A
Number of MPPT	1
Charging
AC charging only	<2h up to 100%
DC charging only	<2.5h up to 100%
DC + AC charging	<1h up to 100%
Allowed operating temperature	-10 C ~ 55 C (14 F ~ 131 F)
General parameters
Working temperature	-30 C ~ + 55 C (-22 F ~ 131 F)
Max. operating altitude	4,000 m (13,123ft.)
Cooling mode	Forced air cooling
Weight	51 kg (112.4 Ib)
Size (WxHxD)	622 502 420mm (24.5 19.7 16.5 in)
Enclosure IP rating	IP54
Connections
AC output socket	2 ports, 16A
USB-A output	1 port, 5V / 3A, 15W Max
Cigarette lighter socket	1 port, 12V / 10A, 120W Max
AC input	1 port
DC input	XT60 1
Input fuse	20A, 250V
