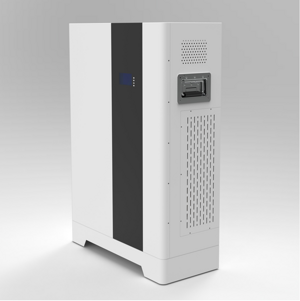

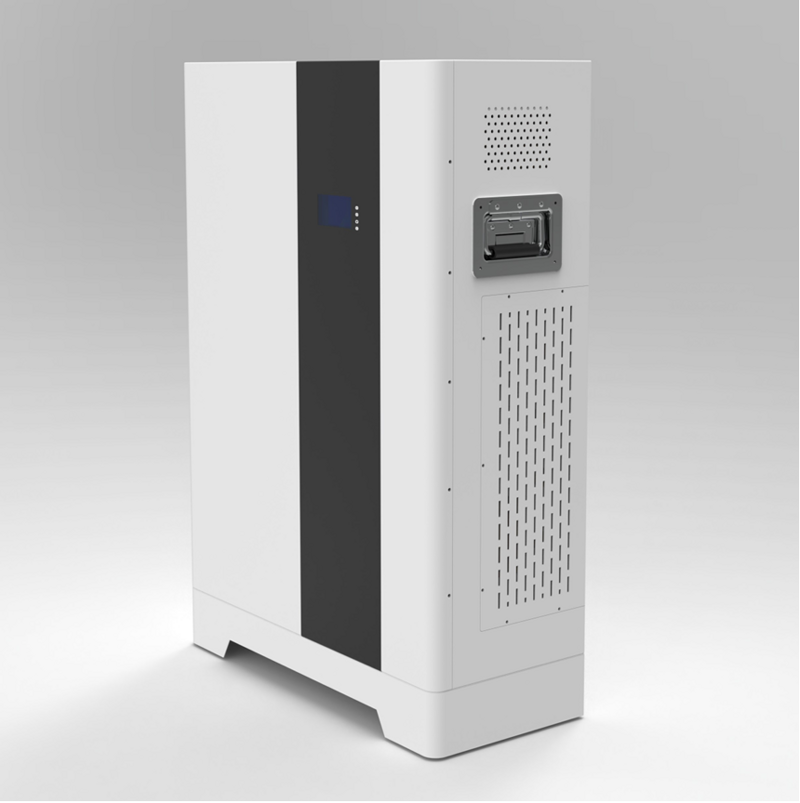

All-in-one solar battery, which integrates inverter and solar energy storage and means energy storage for charging and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability, and high industrial standards. Four charging modes are optional, namely Solar Only, Grid Priority, Solar Priority, and Hybrid Grid and Solar Charging; and two output modes are available, namely Inverter and Grid, to meet different application requirements. Stable AC sine wave output through SPWM modulation Supports a wide range of battery technologies: sodium ion. Dual SIB battery activation method: PV and grid Uninterrupted power supply: simultaneous connection to grid/generator and PV. Smart programming: it is possible to set the output priority from different energy sources. High energy efficiency: MPPT capture efficiency up to 99.9%. Instant operation display: the LCD panel displays data and settings, while it is also possible to view them via app and web page. Energy saving: the energy saving mode automatically reduces energy consumption at zero load. Efficient heat dissipation: through intelligent variable speed fans Multiple safety protection functions: short circuit protection, overload protection, reverse polarity protection, and so on. Undervoltage and overvoltage protection and reverse polarity protection. Supports up to 6 devices of the same model connected in parallel (forming a single-phase, two-phase, or three-phase electrical system) For single-phase configuration, the system is expandable up to 30kW and 60kWh, and for three-phase configuration, 3 units must be connected forming a 15kW and 30kWh battery system ready for any situation, and it is possible to reach 6 units at 30kW and 60kWh of storage for commercial and public systems. In the Google Play Store and Apple App Store, search for "SmartESS" to download and install the app to monitor consumption Battery specifications with inverter
BatterySpecification(@255):
System Energy 10KWh
Inverter Power 5KW
Battery series 1P16S
Systematicsupport(optional) BMS/ActiveBalance/Bluetooth/WiFi
Size(customized) 700*530*700 Weigh (customized) 175KG
Installation method Floor/Movable
IPLevel IP31
Certificate CE
Product Design Life 10Year
Warranty 24Month
BatterySpecification:
BatteryType Sodium-ionbattery
RatedVoltage 49.6V
Working Voltage range 33V-60V
Max Charge Current 50A
Max Discharge Current 50A
Balanced starting voltage Single3.6V
Balance current 50mA
CycleLife 5000
PhotovoltaicinputSpecification:
Maximuminputpower 2270W
MPPT operatingvoltagerange 65-150V
Photovoltaic max open circuitvoltage 150V
Min starting voltage 65V
Max charging current 60A
AC output parameters:
Rated Power 5000W
Max output current 220Vac/22A
Rated output voltage 220-230-240Vac
Rated input voltage 185-276Vac
Rated output frequency 50/60HZ
DCvoltagerange 40-62Vdc
Basicprotectionparameters:
Overcharge protection Yes
Overcurrent protection Yes
Overdischarge protection Yes
Overtemperature protection Yes
Operatingt temperature Charging-20-50Discharging-40-60
Human-computerinteraction APP/Display/LED
Noise 60dB
